Description
|
Model |
SC200D |
SC200TD (0-46) |
SC200TD(0-63) |
|
|
Payload capacity |
2000kg |
2000kg |
2000kg |
|
|
Erection load capacity |
2000kg |
2000kg |
2000kg |
2000kg |
|
Lifting speed |
36m/min |
0-33m/min |
0-46m/min |
0-63m/min |
|
Control type |
Contactor |
Inverter |
Inverter |
Inverter |
|
Motor type |
Chinese |
Chinese |
Nord |
Nord |
|
Motor power |
3×11Kw |
3×11Kw |
2×15Kw |
3×15Kw |
|
Motor quantity |
3sets |
3sets |
3sets |
3sets |
|
Reducer rate |
1: 16 |
1: 16 |
1: 16 |
1: 16 |
|
Max.height |
300m |
300m |
300m |
300m |
|
Lifting device capacity |
250kg |
250kg |
250kg |
250kg |
|
Load dispatching fuse current |
90A |
90A |
90A |
90A |
|
Mast section weight |
150kg |
150kg |
150kg |
150kg |
|
Mast section length |
1508mm |
1508mm |
1508mm |
1508mm |
|
Mast section material |
Painted / Galvanized |
Painted / Galvanized |
Painted / Galvanized |
Painted / Galvanized |
|
Mast section Rack |
Single |
Single |
Single |
Single |
|
Tie-in type |
II type |
II type |
II type |
II type |
|
Safety Device |
SAJ40-1.2 |
SAJ40-1.2 |
SAJ40-1.2 |
SAJ40-1.2 |
|
Inverter Brand |
Schneider |
Schneider |
Schneider |
Schneider |
|

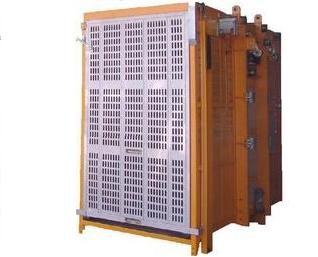

Cage material |
Punched Aluminum |
Punched Aluminum |
Punched Aluminum |
Punched Aluminum |
|
Cage Size |
3.2×1.5×2.3m / 3×1.3×2.5m |
3.2×1.5×2.3m / 3×1.3×2.5m |
3.2×1.5×2.3m / 3×1.3×2.5m |
3.2×1.5×2.3m / 3×1.3×2.5m |
|
Cage weight |
2×2400kg |
2×2400kg |
2×2400kg |
2×2400kg |
|
Cable Drum |
Inclusive |
Inclusive |
Inclusive |
Inclusive |
|
Cable Trolley |
Height>100m |
Height>100m |
Height>100m |
Height>100m |
|
Main Components Quantity |
SC200 |
SC200D |
SC200TD (0-46) |
SC200TD(0-63) |
|
Punched Aluminum Cage |
1set |
1set |
1set |
1set |
|
Master controller(Joystick) |
1set |
1set |
1set |
1set |
|
Safety Control Board (Safety & Overload device) |
1set |
1set |
1set |
1set |
|
3-phase switch |
1no |
1no |
1no |
1no |
|
Up and down limit cam |
1set |
1set |
1set |
1set |
|
Delay limit cam |
1set |
1set |
1set |
1set |
|
Ladder |
1set |
1set |
1set |
1set |
|
Enclosure |
1set |
1set |
1set |
1set |
|
Base frame |
1set |
1set |
1set |
1set |
|
Power box |
1set |
1set |
1set |
1set |
|
Spring |
3 nos |
3 nos |
3 nos |
3 nos |
|
Foundation frame |
1set |
1set |
1set |
1set |
|
Motor & Reducer |
3sets |
3sets |
3sets |
3sets |
|
Single Rack Mast Section |
according to height |
according to height |
according to height |
according to height |
|
type II Tie-in |
according to height |
according to height |
according to height |
according to height |
|
Jib Crane |
1set |
1set |
1set |
1set |
|
Cable Drum |
1set |
1set |
1set |
1set |
|
Cable Trolley (Option) |
1set |
1set |
1set |
1set |
|
Control Panel |
1set |
1set |
1set |
1set |
